Introduction
In the mining, cement, and power plant industries, crushers play a crucial role in reducing the size of raw materials to more manageable pieces. Among the many parts that make up a crusher, the dynamic ring and static ring are two key components that significantly affect the performance and longevity of the crusher. These rings work together to create the compressive force necessary to break down large materials.
In this blog, we’ll take a closer look at these essential components: what they are, how they function, and how they contribute to the efficiency of crushers. Whether you’re operating a large-scale crushing system or overseeing maintenance, understanding the role of dynamic and static rings can help ensure your equipment runs smoothly for years to come.
Dynamic Ring and Static Rings in Crushers
What is a Dynamic Ring?

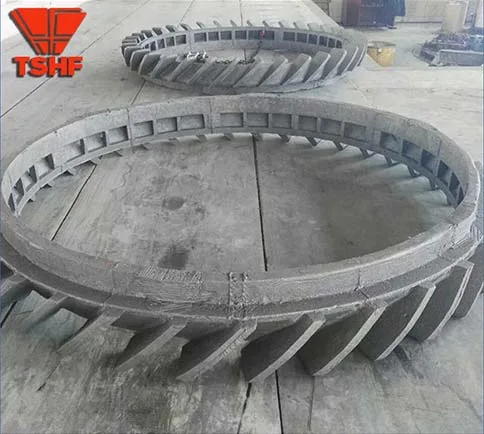

The dynamic ring, also referred to as the moving ring, is a vital part of cone crushers. This component is attached to the crusher’s mantle, which rotates around a stationary axis. As the mantle moves, the dynamic ring helps to crush materials by exerting compressive force in a circular motion. It’s essential that the dynamic ring can withstand the high levels of stress and friction that come with constant movement and contact with materials.
Functions of the Dynamic Ring
- Compression: The primary role of the dynamic ring is to exert pressure on the material inside the crusher, forcing it to break down into smaller, more manageable sizes.
- Impact Resistance: The dynamic ring is subjected to continuous impact as it makes contact with hard materials. As a result, it must be made from materials capable of withstanding these forces without failing.
- Wear Resistance: Due to its role in crushing, the dynamic ring comes into direct contact with the crushed material, which causes significant wear. The material used to make the dynamic ring must therefore have high wear resistance to last longer and reduce the need for frequent replacements.
Materials Used for Dynamic Rings
Dynamic rings are typically made from high-manganese steel or alloy steel. High-manganese steel is ideal because it has excellent impact resistance and, over time, work hardens, increasing its toughness as it wears. Alloy steels are also used in high-stress applications to improve toughness and provide additional wear resistance.
What is a Static Ring?

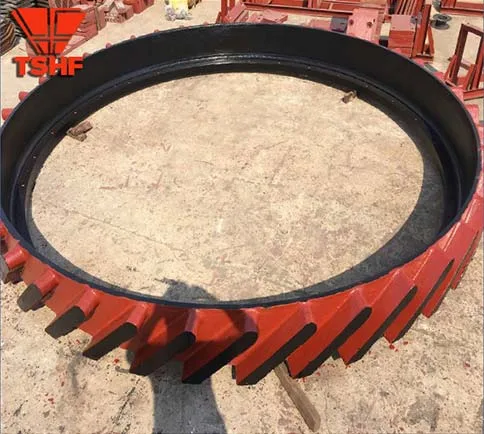

The static ring, on the other hand, is the stationary counterpart to the dynamic ring. Unlike the dynamic ring, the static ring does not move. It stays fixed within the crusher and provides a stable surface for the dynamic ring to exert force. The static ring is designed to support the crushing action and help guide the material through the crushing chamber.
Functions of the Static Ring
- Containment: The static ring helps to keep the material within the crushing chamber, preventing it from escaping the compression zone.
- Support: As the dynamic ring applies compressive force to break the material, the static ring provides structural support to ensure the crushing process remains efficient.
- Wear Resistance: Though it does not move, the static ring is still subject to wear because of constant contact with the crushed material. Its material must be able to withstand this abrasion for extended periods.
Materials Used for Static Rings
Static rings are often made from high-chromium iron or martensitic steel. These materials are particularly well-suited for applications requiring high wear resistance and durability. High-chromium iron, in particular, is known for its ability to resist both impact and wear, making it ideal for the harsh conditions inside a crusher.
Dynamic Ring vs Static Ring: Key Differences
| Feature | Dynamic Ring | Static Ring |
|---|---|---|
| Movement | Moves with the mantle | Stationary |
| Material | High-manganese steel, alloy steel | High-chromium iron, martensitic steel |
| Primary Role | Crushes materials by applying compression | Provides structural support and containment |
| Wear Resistance | High resistance to impact and abrasion | High resistance to abrasion |
| Cost | Generally, more expensive due to a higher wear rate | Less expensive due to the stationary position |
Importance of Dynamic and Static Rings in Crusher Efficiency
Both the dynamic and static rings play vital roles in ensuring the efficient functioning of crushers. When these components are designed and maintained properly, they can significantly improve the overall performance of the crushing system.
Benefits of Properly Maintained Rings
- Increased Throughput: A well-maintained dynamic and static ring system leads to improved throughput. The crusher will break down materials more efficiently, increasing production rates without compromising on quality.
- Extended Equipment Life: The longer your dynamic and static rings last, the longer the lifespan of your crusher as a whole. Regular inspections and timely replacements will ensure that you don’t have to replace more expensive components prematurely.
- Reduced Operational Downtime: Frequent breakdowns and unplanned maintenance can cause costly downtime. By using high-quality materials for your dynamic and static rings and adhering to maintenance schedules, you reduce the risk of unexpected failures.
How Rings Contribute to Consistent Crushing Quality
Dynamic and static rings play a significant role in delivering consistent material size and quality. The constant, even pressure exerted by the dynamic ring within the fixed containment of the static ring ensures that the material is uniformly crushed. This consistency is vital for industries where uniform particle size is necessary, such as cement production.
Best Practices for Maintaining Dynamic and Static Rings
Proper maintenance is crucial for maximizing the life of both the dynamic and static rings. Consider the following best practices to ensure your rings continue to perform optimally:
- Regular Inspections: Inspect both the dynamic and static rings for signs of wear, cracks, and deformation. Look for uneven wear, which could indicate alignment issues or overloading.
- Proper Lubrication: Regular lubrication of moving parts will reduce friction and wear between the dynamic and static rings, increasing their lifespan.
- Timely Replacements: When the rings have worn down past a certain threshold, replace them promptly to avoid causing damage to other components within the crusher.
- Feed Material Management: Ensure that the feed material is within the size and hardness specifications recommended by the manufacturer. Overloading the crusher can lead to excessive wear on the rings.
Conclusion
The dynamic and static rings are two of the most crucial components in any crushing system. While they may seem simple, their design, material composition, and proper maintenance can significantly affect the performance and efficiency of your crusher.
By understanding the roles of these components and ensuring they are maintained with the right materials, you can improve your crusher’s throughput, reduce downtime, and extend its service life.
Need help with crusher maintenance or parts? Contact us today for expert advice and quality solutions!
FAQ
What’s the difference between the dynamic ring and the static ring?
The dynamic ring moves with the mantle to exert compressive force on the material, while the static ring remains stationary and provides containment and support.
What materials are used to make the rings?
Dynamic rings are made from high-manganese steel or alloy steel, while static rings are made from high-chromium iron or martensitic steel for better wear resistance.
How often should dynamic and static rings be replaced?
Regular inspections will reveal when the rings have worn down too much. Typically, rings should be replaced when they can no longer perform efficiently or when they show signs of significant damage.
How can I extend the lifespan of my crusher rings?
Ensure regular maintenance, proper lubrication, and timely replacements of worn rings. Also, feed material should be within the recommended size to avoid excessive wear.
